• Rugged Design Permanent Mold Casting Aluminum Easily Assembled Durable Nature
Rugged Design Permanent Mold Casting Aluminum Easily Assembled Durable Nature

Rugged Design Permanent Mold Casting Aluminum Easily Assembled Durable Nature

Product Details:

Place of Origin: China Luoyang
Brand Name: Liushi
Certification: ISO 9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Wooden Boxes
Delivery Time: 30-45 days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Aluminum Auto Parts Mould Customized: Yes
Mould Life: 50,000-100,000 Shots Average Wall Thickness: >3mm
Type: Lost Foam Casting Demoulding: Automatic
Surface Treatment: Heat Treatment Application: Car
Product Material: Aluminium
High Light:

permanent die casting

,

permanent mold

Product Description

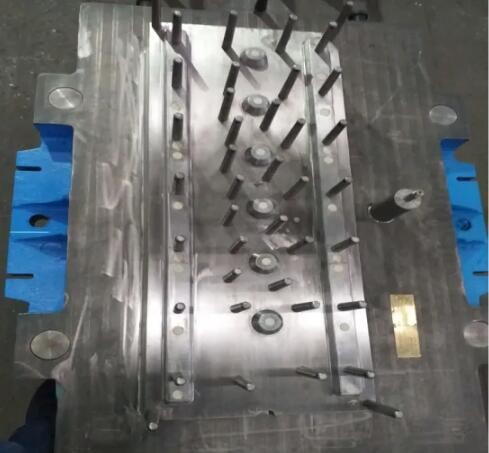

Aluminum Die Cast Mould with Aluminum Castings for Auto Parts



Auto Parts Mould Features

Easily Assembled
Fine finish
long life using
Low maintenance
Durable nature

High Temperature Resistance
Customized Design
With Accuracy and Stability Dimensional
High strength



Auto Parts Mould Proudct Range

Transportation, Agricultural machinery equipment, Construction machinery, Water conservancy facilities, Space flight and aviation, Chemical machinery, Sea carriage and so on.



The main benefits of the die casting process include:



1. High quality: Parts created through die casting deliver a long service life.

2. High reliability: Uniformity of mass-produced parts is exceptional.

3. Quick production: Die cast tooling requires minimal maintenance.

4. Versatile design: Die casting can create virtually any size, part geometry, surface texture or luster.

5. Minimal assembly: Assembly features such as studs, drill holes and bosses can be integrated into mold design..





Product Name
Auto Parts Mould
Size
customized
Color
As your requirements
Material
Aluminum
Application
Auto parts, Motorcycle,Light fixture, lamp cover, led light housing,heat sink or any other type of die casting parts
Service
OEM/ODM
Product's Design
Customized as customers' drawings or samples



Manufacture Process


1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery



Our Advantages


1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have teflon(TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.



Company profile



Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.


Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
