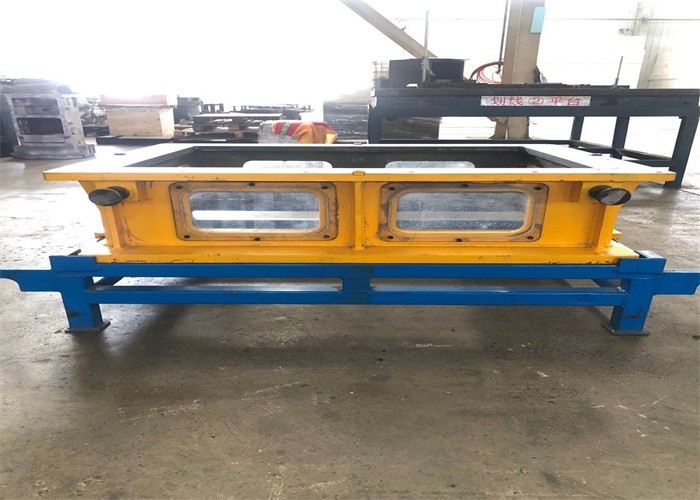

• HRC45 Metal Foundry Sand Casting Mould For Auto Part Housing
HRC45 Metal Foundry Sand Casting Mould For Auto Part Housing

HRC45 Metal Foundry Sand Casting Mould For Auto Part Housing

Product Details:

Place of Origin: China Luoyang
Brand Name: Liushi
Certification: ISO 9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Wooden Boxes
Delivery Time: 30-45 days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Sand Casting Mould Product Material: Aluminium, Steel, Grey Iron
Demoulding: Automatic Surface Treatment: Heat Treatment
Average Wall Thickness: >4mm Product Range: Auto Parts, Motorcycle,light,Industrial,furniture
Metal Color: Black Metal Customized: Yes
Mould Life: 50,000-100,000 Shots Using Hardness: >HRC45
High Light:

foundry sand casting mould


HRC45 sand casting mould

Product Description



Metal Foundry Sand Casting Mould Tooling for Auto Part Housing



Raw material


Steel P20, 2311, H13, Grey Iron, Ductile iron,



Design&Program Softwares


CAD, Cam,Cae, PRO-E, Ug,Soild Works


Other Equipment

Gantry Machining Center, OKUMA 4 axis &5 axis, Inductothem Electric furnace 10 Ton , Sand blasting machine, Resin boned machine,


Manufacturing technique


Sand casting, Moulding Line

Application Milling machine ,vehicle mould, steam turbine, mining machine, construction machine, Wind generator…

complete testing equipment and testing procedure to ensure casting elements content fulfill requirements ;

Testing proceeded in cast sand, raw material, molten iron , finished product


Wooden box
Delivery 30-45 days
Needed information to quote Material, Drawing, Heat treatment, work allowance, Need Machining or not.



We could verify the casting process with the professional casting process software CAE before we develope the mould, to make sure the product output rate is higher;


Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery


Our Advantages

1. We are the well-known foundry mould manufacturer in China and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment.Professional undertake various kinds of superior difficulty and complex casting Mould;
2. We have 3 senior casting mould craftsmen and 36 professional foundry mould designers who design the structure and the process of the mould. That ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have teflon(TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
