High Precision Sand Casting Mould for Grooved Pipe Fittings Professional OEM Mold Maker & Foundry Tooling Supplier

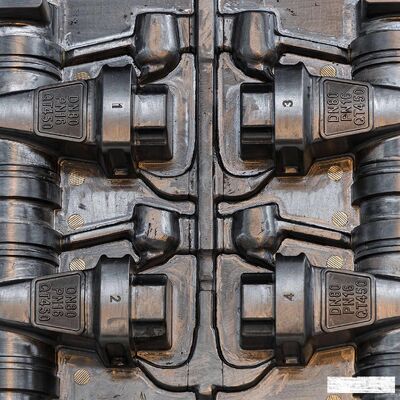

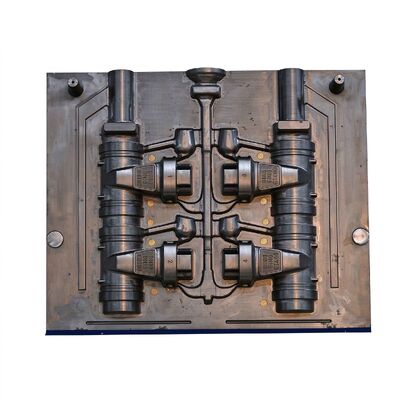

This high precision Sand Casting Mould is engineered for foundries producing grooved pipe fittings. The tooling set covers pattern equipment, pattern plates, and core boxes, each machined from the customer’s casting drawing. The mould is arranged to reproduce the fitting’s external contour, internal bore, and grooved profile that accepts coupling connections. It can be configured for green sand or resin sand molding, depending on the foundry line and fitting size. OEM customization adjusts pattern layout, core box build, and gating provisions to suit the molding method and casting program.

Material of Sand Casting Mould:

USA Brand : A360,A380,A356,A383 ECT

Application:

1. Ductile Iron Grooved Pipe Fittings
   Tooling for couplings, elbows, tees, and reducers used in grooved piping systems.

2. Fire Protection Piping
   Sand Casting Mould tooling for fittings used in sprinkler and fire main networks.

3. Water Supply and Drainage
   Patterns and core boxes for grooved fittings in municipal and industrial water lines.

4. HVAC and Mechanical Piping
   Tooling for grooved fittings used in heating, ventilation, and air conditioning circuits.

5. Industrial and Mining Pipelines
   Mould tooling for grooved fittings in process plants, slurry lines, and mining piping.

Production Process:

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Quality Control

1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)

2) Checking the details before the production line operated

3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)

4) Checking the goods after they are finished---- Final quality control(FQC)

Packaging & Shipping

Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you on time and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world. We can also customize the packing method according to customers' needs. Suitable for seaway transportation.

Company profile:

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.

Why Choose Us

1. Fitting Geometry Review Before Tool Design
   We examine the grooved profile, bore, and parting line before finalizing the Sand Casting Mould layout.

2. Complete In-House Tooling Production
   Pattern making, CNC machining, and assembly are handled internally for direct communication and faster design changes.

3. Traceable Tooling Materials
   Tooling materials are sourced with documentation to support consistent mould construction.

4. Foundry Trial Support
   Sample patterns and core boxes can be tested before shipment to confirm fit, release, and dimensional performance.

5. OEM/ODM Project Adaptation
   The Sand Casting Mould can be tailored to different molding machines, core shooters, and fitting production programs.

FAQ:

1.How can I get the quotation?

Please give us your drawing, quantity, weight and material of the product.

2.If you don't have the drawing,can you make drawing for me?

Yes, we are able to make the drawing of your sample duplicate the sample.

3.When can I get the sample and your main order time?

Sample time: 15-30 days after start to make mold.

Order time: 35-40 days, the accurate time depends on product.

4.What is your payment method?

Tooling: 50% T/T in advance, after sample approved pay balanced.

Order time: 30% deposit, 70% against copy of B/L.

5.Which kind of file format you can read?

PDF, IGS, DWG, STEP, JPG, PNG, MAX

6.What is your surface treatment?

Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.

7.What is your way of packing?

Normally we pack goods according to customers' requirements.
