Industrial Sand Casting Mould for Pattern Making OEM Aluminum Alloy Foundry Tooling for Production

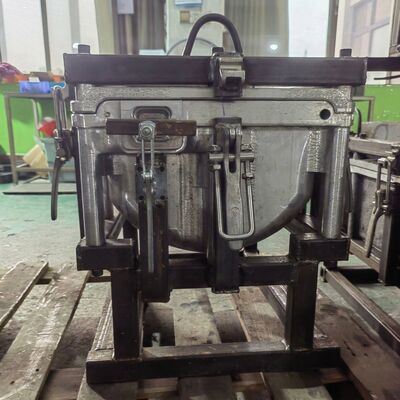

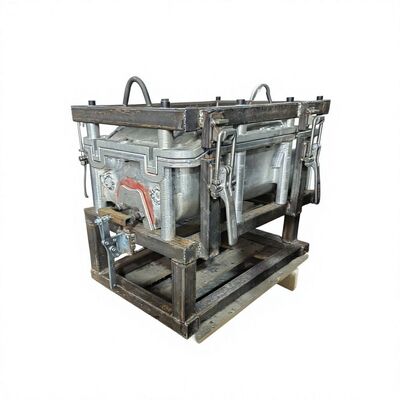

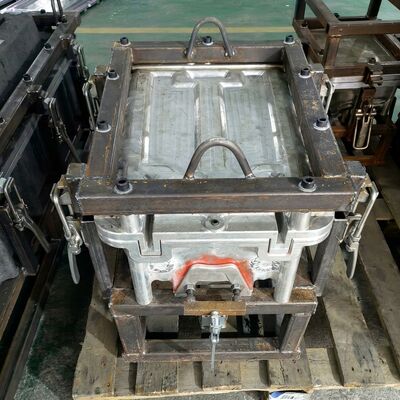

This industrial Sand Casting Mould is a foundry tooling set developed for pattern making in production environments. It covers pattern equipment, pattern plates, and core boxes, all machined to the customer’s casting drawing and matched to the foundry’s molding method. The tooling is used to form cavities in sand molds and to produce cores for internal passages. Aluminum alloy is commonly selected for the tooling body to reduce weight and improve handling on the molding floor. OEM customization adapts the mould layout, gating provisions, and core box design to the specific casting program and molding line.

Material of Sand Casting Mould:

USA Brand : A360,A380,A356,A383 ECT

Application:

• Industrial Machinery Castings
  Sand Casting Mould tooling for brackets, covers, and structural components used in industrial equipment.

• Pump and Valve Bodies
  Patterns and core boxes for fluid-handling castings produced in iron or aluminum foundries.

• Automotive and Transport Components
  Tooling for housings, mounts, and supports used in vehicle and transport manufacturing.

• Machine Tool and Heavy Equipment Parts
  Mould tooling for beds, columns, and gear cases in machine tool and heavy equipment production.

• General OEM Foundry Production
  Patterns and core boxes for a range of commercial castings supplied to OEM production lines.

Production Process:

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Quality Control

1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)

2) Checking the details before the production line operated

3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)

4) Checking the goods after they are finished---- Final quality control(FQC)

Packaging & Shipping

Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you on time and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world. We can also customize the packing method according to customers' needs. Suitable for seaway transportation.

Company profile:

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.

Why Choose Us

• Foundry Process Review Before Tool Design
  We review the molding method and casting geometry before finalizing the Sand Casting Mould layout, parting line, and core box details.

• Complete In-House Tooling Production
  Pattern making, CNC machining, and assembly are handled internally, allowing direct communication and faster response to design changes.

• Traceable Tooling Materials
  Tooling materials are sourced with documentation to support consistent mould construction and quality verification.

• Foundry Trial Support
  Sample patterns and core boxes can be tested before shipment, helping confirm fit, release, and dimensional performance.

• OEM/ODM Project Adaptation
  The Sand Casting Mould can be tailored to different molding machines, core shooters, and production programs.

FAQ:

1.How can I get the quotation?

Please give us your drawing, quantity, weight and material of the product.

2.If you don't have the drawing,can you make drawing for me?

Yes, we are able to make the drawing of your sample duplicate the sample.

3.When can I get the sample and your main order time?

Sample time: 15-30 days after start to make mold.

Order time: 35-40 days, the accurate time depends on product.

4.What is your payment method?

Tooling: 50% T/T in advance, after sample approved pay balanced.

Order time: 30% deposit, 70% against copy of B/L.

5.Which kind of file format you can read?

PDF, IGS, DWG, STEP, JPG, PNG, MAX

6.What is your surface treatment?

Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.

7.What is your way of packing?

Normally we pack goods according to customers' requirements.
