Lost Foam Mold for Machine Tool Bed Castings – EPS Foam Tooling, OEM/ODM

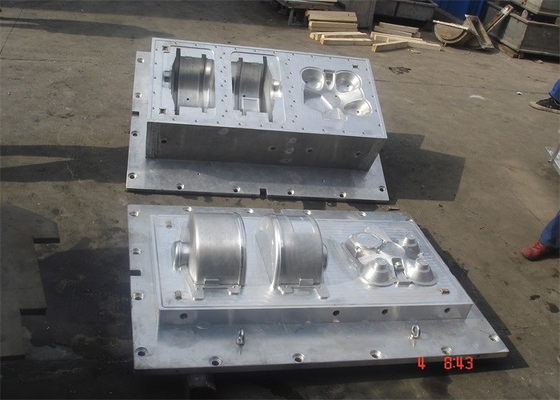

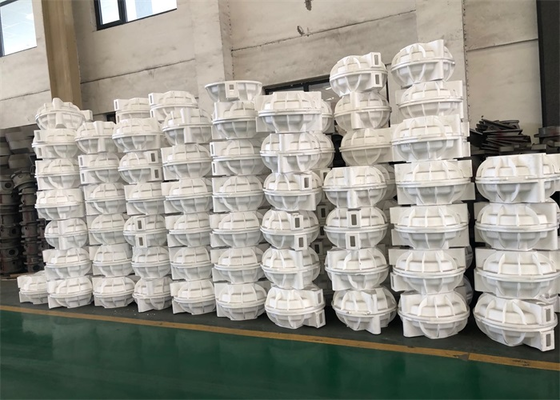

This custom lost foam mold is built to produce expendable EPS foam patterns for machine tool bed castings. The tool is machined from aluminum alloy, with cavity geometry shaped to match the bed casting layout and the downstream lost foam process. Steam and cooling circuits are arranged to support even bead fusion, while venting and ejection features help release fragile foam patterns without damage. The mold can be configured for OEM/ODM programs and adapted to single or multi-cavity production. From design review to trial molding, the tooling is developed around the dimensional and surface needs of the final metal casting.This custom lost foam mold is built to produce expendable EPS foam patterns for machine tool bed castings. The tool is machined from aluminum alloy, with cavity geometry shaped to match the bed casting layout and the downstream lost foam process. Steam and cooling circuits are arranged to support even bead fusion, while venting and ejection features help release fragile foam patterns without damage. The mold can be configured for OEM/ODM programs and adapted to single or multi-cavity production. From design review to trial molding, the tooling is developed around the dimensional and surface needs of the final metal casting.

 Specifications

Mould Features

1. Pattern-Specific Cavity Design
   Cavity details, draft angles, and parting lines are developed from the customer’s foam pattern requirements, ensuring the molded EPS shape suits the lost foam casting route.

2. Aluminum Tool Construction
   The mold body is made from aluminum alloy, which offers rapid thermal response, resistance to steam exposure, and manageable tool weight for handling and setup.

3. Integrated Steam and Cooling Circuits
   Internal channels are positioned to deliver steam for bead expansion and water for cooling, helping maintain consistent pattern density across production cycles.

4. Venting and Ejection Provisions
   Vent paths and ejector locations are incorporated to promote complete cavity fill and allow clean removal of delicate foam patterns.

5. Flexible Cavity Configuration
   The tool can be arranged for single or multiple cavities, with replaceable inserts and split-block construction to simplify maintenance and future geometry adjustments.

Applications

1. CNC Machine Bed Patterns
   Foam tooling for producing expendable patterns used in machine tool bed castings.

2. Lathe Bed and Base Patterns
   Molds for foam patterns that support the casting of lathe beds, bases, and related structural components.

3. Milling Machine Body Patterns
   Tooling for foam patterns used in milling machine body and column castings.

4. Grinding Machine Housing Patterns
   Molds for producing foam patterns applied to grinding machine housings and supports.

5. Heavy Machine Tool Component Patterns
   Foam tooling for large machine tool parts such as columns, boxes, and structural frames.

Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Packing & Shipping

Flexible Shipping Options: We understand that every customer has unique needs. That's why we offer flexible shipping options, including air freight, sea freight, and expedited delivery services. Our team will work with you to determine the most cost-effective and efficient shipping method based on your timeline and budget.


Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
