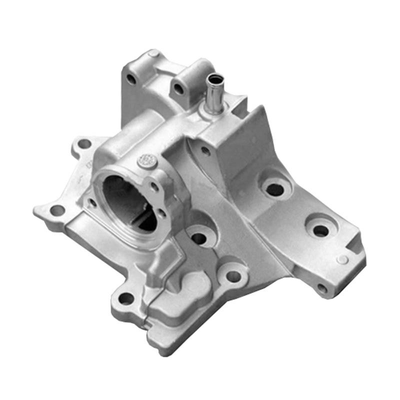

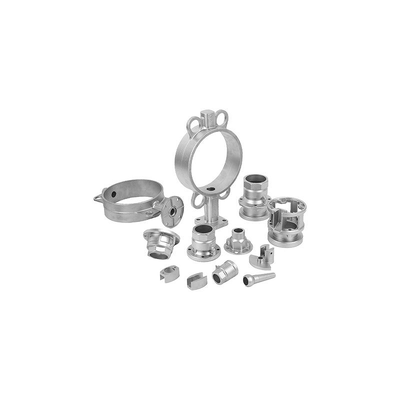

OEM Customized Metal Precision Casting Mould China Factory Aluminum Die Casting Parts Industrial Use Customized
Product Details
| Product Name | Aluminium Die Casting Mould | Customized | Yes |
|---|---|---|---|
| Demoulding | Automatic | Casting Mold | Design, Fabrication, Test, Modification & Maintenance |
| Mould Life | 500,000-1,000,000 Shots | Process | Casting +Machining(If Need)+Surface Treatment |
| Surface Treatment | Shot Blast | Average Wall Thickness | >3mm |
| Highlight | OEM aluminum die casting parts,customized metal precision casting mould,industrial aluminum die casting mould |
||
Product Description
This OEM customized precision casting mould is engineered for high-volume production of aluminum die casting components in industrial environments. Manufactured in our China facility, the mould is constructed from hot-work die steel that provides excellent resistance to thermal fatigue and mechanical wear. The cavity and core are precisely machined to match customer part geometry, with optimized gating and overflow systems to ensure smooth metal flow.
Aluminum Die Casting Mould Specifications
| Material Capability | Aluminum, Zinc, Brass, Iron, Carbon steel, Stainless steel, etc. |
|---|---|
| Surface Treatment | Shot blast, beat blast, powder coating, painting, zinc plating, hot dip galvanized, electrophoreses etc. |
| Product Weight | 0.01KG-50000KG |
| Casting Tolerance | CT3-CT9 |
| Trade Terms | FOB |
| Packing | Single polybag, bubble bags, wooden case, carton box etc. |
| Delivery Terms | 15-45 days for bulk orders |
Key Features
-
Customized Cavity GeometryThe cavity and core are machined directly from customer CAD models, with slide cores and angle pins incorporated for complex undercuts, side holes, and mounting flanges.
-
Optimized Fill DynamicsRunner and gate designs are tailored to the specific alloy and part shape, with gate locations selected to achieve balanced cavity fill and minimize entrapped air.
-
Targeted Heat ExtractionCooling channels are placed adjacent to thick sections and critical areas, using baffles or bubblers as needed to achieve consistent cooling rates across the part.
-
Non-Marring EjectionEjector pin placement is determined to avoid cosmetic and sealing surfaces, with return pins ensuring proper alignment after each shot.
-
Durable ConstructionThe mould base and inserts are manufactured from materials selected for their ability to withstand repeated thermal cycles, with replaceable wear plates and guide components for extended service.
Manufacturing Process
- Review part design, drawings and quality standards from clients
- Mould and tooling design & manufacturing
- Mould and tooling testing & sample confirmation
- Die casting raw castings
- Surface treatment: Trimming, deburring, polishing, cleaning, passivation & powder coating per customer requirements
- Precision machining: CNC lathes, milling, drilling, grinding etc.
- Full inspection
- Packing
- Delivery
Applications
- Industrial Machinery Casings: Protective housings for gearboxes, pumps, and hydraulic valves requiring dimensional accuracy and pressure retention
- Automotive Aftermarket Parts: Aluminum brackets, sensor holders, and mounting plates for vehicle modification and repair
- Electrical Enclosures: Junction boxes and control unit housings requiring clean surfaces and precise mounting points
- Lighting Fixture Components: Heat sink bodies and reflector holders for high-power industrial and commercial lighting
- Manual Tool Frames: Structural bodies for hand tools such as saws, grinders, and drills, balancing weight and rigidity
Packing & Shipping
- 100% Damage-Free Record: 10+ years of global shipments to 30+ countries
- All-Inclusive Logistics: We handle export declarations including Commercial Invoice, Packing List, and Certificate of Origin
- 24/7 Tracking: Real-time updates from factory to your dock
- Insurance Coverage: Full-value protection against all risks including marine and land transport
About Our Company
As a leading Chinese brand, Luoyang Liushi Mould actively develops international markets, exporting large quantities of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and have manufactured moulds for Germany's Teubert machines and American Vulcan molding machines.
Our engineers have developed specialized cooling systems and gate designs that ensure complete cavity filling without defects. The moulds maintain exceptional dimensional stability even when producing parts with wall thicknesses below 1mm. Ideal for electronics housings, automotive lightweight components, and consumer products, these precision moulds enable you to push the boundaries of aluminum die casting while maintaining structural integrity in your parts.
Why Choose Us
-
Engineering CollaborationWe review customer part designs early and provide feedback on draft angles, gate placement, and ejector pin positioning to optimize manufacturability.
-
Integrated ProductionMould design, machining, assembly, and tryout are all performed in-house, ensuring consistent communication and shorter response times.
-
Quality VerificationWe conduct fit-up inspections and trial castings, and provide sample parts and measurement reports for customer approval before full production.
-
Service DocumentationEach mould is shipped with maintenance guidelines, cooling circuit schematics, and recommended spare parts inventory.
