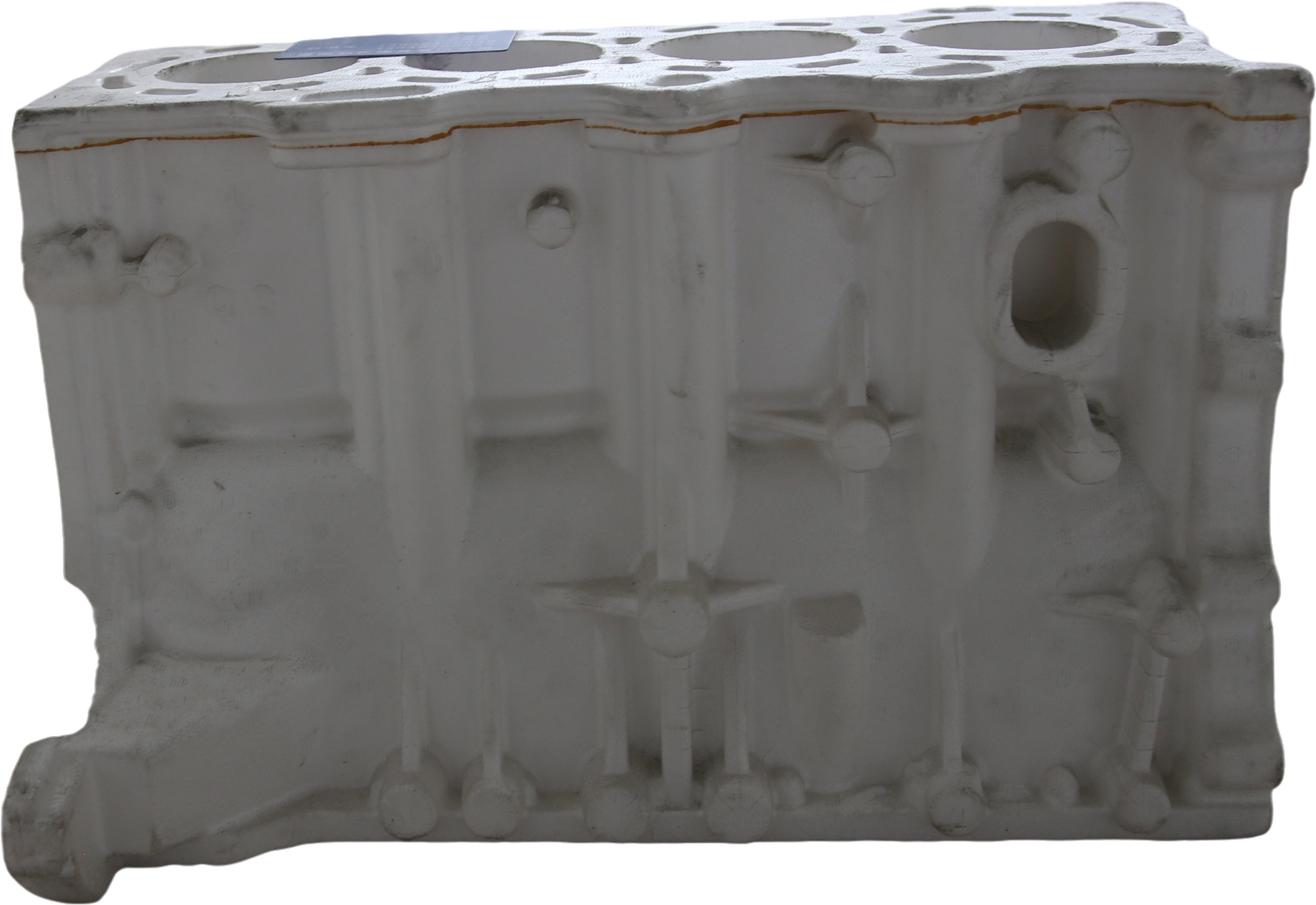

Customized Aluminum Four Cylinder Block Low Pressure Die Casting

Customized Aluminum Four Cylinder Block Low Pressure Die Casting

The primary portion of a four-cylinder engine is the block, which houses the cylinders and other internal components.
A four-cylinder block housing's functions include protecting the cylinders and giving the engine structural stability.
Support: Provides support for the crankshaft, camshaft, and other engine parts.
Heat management: By integrating cooling tubes, it makes it easier to cool the engine.
The engine oil that lubricates the moving parts is contained in the oil containment.


Features of Aluminum Four Cylinder Block

1. die casting parts in aluminum such as ADC12, ADC10, A380 & A356.A360

2. Customer's drawing or sample will be highly followed up. The drawing in STP or IGS format will be helpful.

3. Surface: coating, Painting, E-Coating. Phosphate, sand blast, Dying....etc.

4. Flexible cooperation term, small orders for testing is acceptable.

Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Our Advantages

1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
