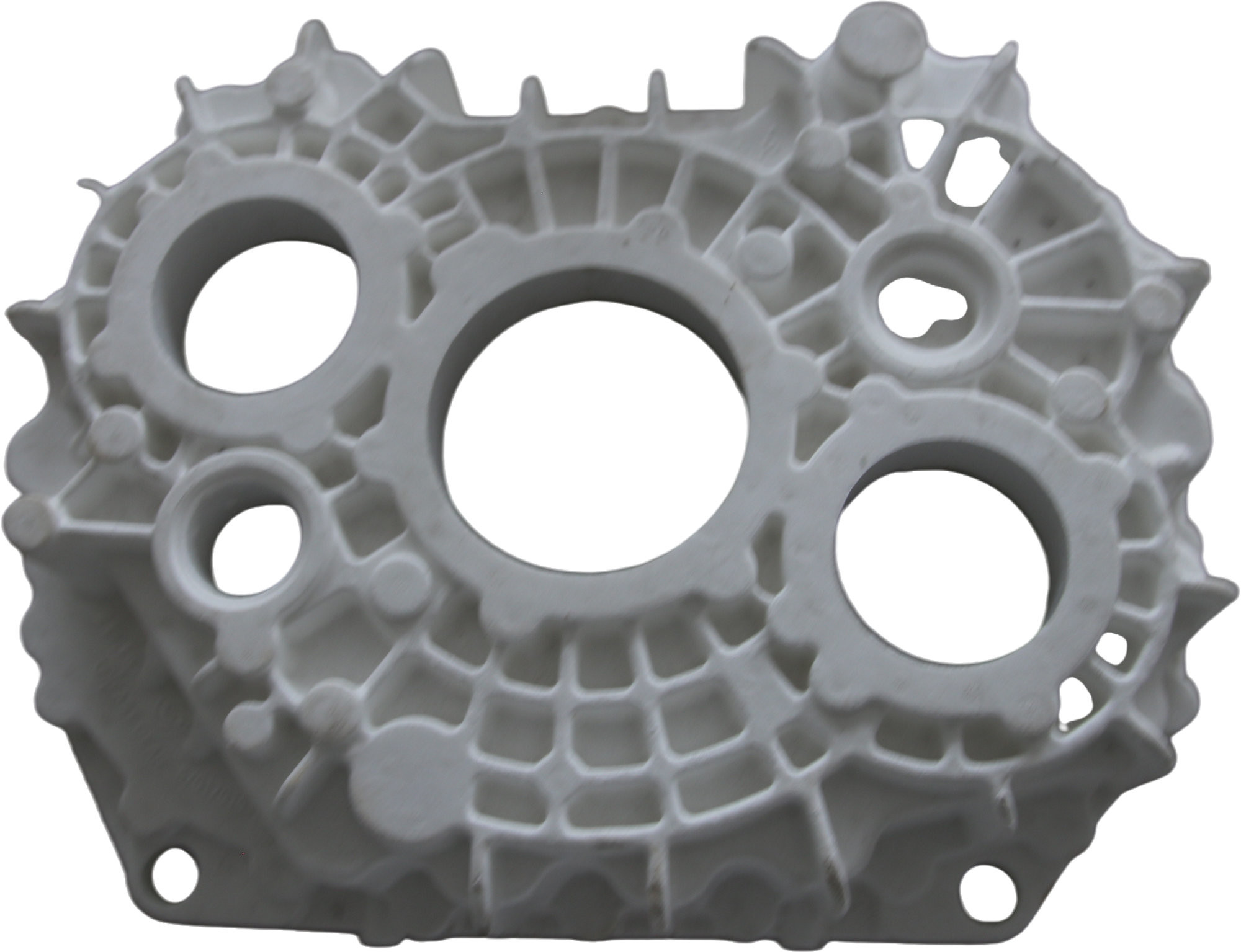

Low Pressure Metal Casting Molds For Automotive Motor Housing

Place of Origin China Luoyang
Brand Name Liushi
Certification ISO 9001:2008
Model Number Automotive Motor Housing
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automotive Motor Housing Mold Material EPS
Pressure Low Pressure Using Hardness >HRC45
Mould Life 50,000-100,000 Shots Type Metal Casting Molds
Surface Treatment Heat Treatment Average Wall Thickness >3mm
High Light

Low Pressure Metal Casting Molds

,

Metal Casting Molds Automotive Motor Housing

,

Automotive Motor Housing Metal Casting Molds

Leave a Message
Product Description

Low Pressure Metal Casting Molds For Automotive Motor Housing



Metal die cast mold, contains a cavity in which molten metal is injected and formed. Once hardened, the tooling is separated into multiple pieces, allowing for the removal of the castings. Dynacast offers both our proprietary multi-slide die cast tooling, as well as conventional die cast tooling. Each method offers unique strengths, depending on the specifications and scale of the project.



Metal Casting Molds Features

  • Engineering With Accuracy and Stability Dimensional
  • Easily Assembled and Disassembled;
  • Low maintenance
  • High strength
  • Rugged design
  • Durable nature



Product Name
Low Pressure Metal Casting Molds For Automotive Motor Housing
Size
customized
Color
As your requirements
Material
Aluminum
Application
Auto parts, ,Light fixture, lamp cover, led light housing,heat sink or any other type of die casting parts
Service
OEM/ODM
Product's Design
Customized as customers' drawings or samples



Manufacture Process


1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery



Our Advantages


1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;



Company profile



Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.


Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
