HT200 Pressure Die Casting Mould Gray Iron Gearbox Housing

Place of Origin China Luoyang
Brand Name Liushi
Certification ISO 9001:2008
Model Number Electric Drive Motor Housing
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Foundry Low Pressure Aluminum Casting Material ADC12 A380
Product Range Electric Drive Motor Housing Average Wall Thickness >3mm
Customized Yes Using Hardness >HRC45
High Light

HT200 Pressure Die Casting Mould


Gearbox Housing Pressure Die Casting Mould


Gray Iron Pressure Die Casting Mould

Leave a Message
Product Description

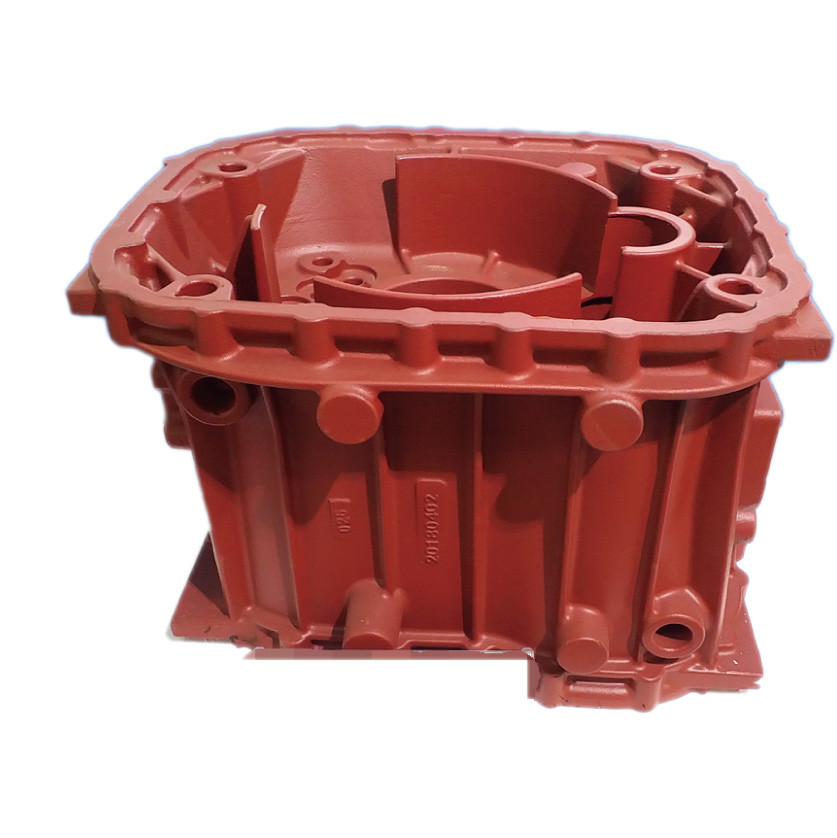

HT200 Pressure Die Casting Mould Gray Iron Gearbox Housing


The Gearbox Housing  is the basic component, used to install and support all parts of the transmission and store lubricating oil. It has precise bores for mounting bearings. The transmi ssion is subject to variable loads, so the housing should have sufficient stiffness, the inner wall should be reinforced, the shape is complex, and it is mostly made of castings (the material is gray cast iron, commonly used HT200).

In order to facilitate installation, the transmission part and the control part are often made into splits, and the box cover and the shell are connected with bolts and positioned reliably. There are refueling and oil draining ports on the casing, as well as a dipstick for oil level inspection. Heat dissipation should also be considered.


Low Pressure Aluminum Casting Specification


Product name
Foundry Low Pressure Aluminum Casting Electric Drive Motor Housing
ADC 10/ADC12/A360/A380/A390/5052 /6061/ 6063 / 2017 / 7075
Surface treatment
provide a variety of surface treatments, such as painting, anodizing, painting, powder spraying, sandblasting, chrome plating and
so on
300-1000 ton Die casting machine, CNC lathe, CNC machining center, CNC turning machine, grinder, polisher etc.
Die casting, deburring, drilling, threading, CNC, sand blasting, polishing, powder-coating, Anodizing
According to customers’ drawings
Confirmation of Samples
Before the volume production, we will produce the samples in advance for confirmation


Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery


About Us


While leading the Chinese brand, Luoyang Liushi mould develop the international market positively, we export a large number of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and we have manufactured mould for Germany's machine Teubert and American molding machine Vulcan.


China LUOYANG LIUSHI MOULD CO.,LTD company profile 0


The research and development center is consist of 36 designers who are expert in 3D design, mold design, NC programming craftsmen, lost foam casting craftsmen and so on. We provide a full range of design and services for you. We discuss the mould process and confirm the scheme with your engineer together, this can guarantee the mould structure more reasonable more safety and more efficiency. We finish the product model and detection through reserve scan and 3D Coordinate Measuring technology to make sure each customer satisfy their mould.


China LUOYANG LIUSHI MOULD CO.,LTD company profile 1



We have lost foam casting process and gravity casting process. There are 2 automatic casting production lines of lost foam process, 1 production line of T6 heat treatment, 1 set EPS foaming machine, 2 sets 1000kg centralized melting furnaces, 6 sets 600kg graphite crucible furnaces, 1 set automatic HS - CXJ - 3200 high efficiency and energy-saving molding machine, 16 sets of other model white pattern molding machine, 1 set plain bumper with the same advanced performance as American Fukang brand, 1 set density equivalent meter, 1 set Fosco dusting machine; 2 sets Aluminum alloy gravity pouring and turning machine, 3 sets Coated sand core-making machine , 1 set X-ray flaw detection spectrometer, 1 set Metallographic analyzer, and more than 20 sets of other corollary equipment. Not only we can supply with Aluminum Alloy Castings , but also we can supply with machined finished parts. The capacity of Aluminum Alloy Gearbox Casing Castings can reach up to above 10000 tons every year. The reliable products passing rate of 95%.
