H97 Low Pressure Die Casting Mould vehicle Aluminium Support

Place of Origin China Luoyang
Brand Name Liushi
Certification ISO 9001:2008
Model Number Aluminum Housing Motor
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vehicle Aluminium Support Type Low Pressure Die Casting Mould
Feature High Precision Demoulding Automatic
Average Wall Thickness >3mm Product Material ADC10, ADC12, A360, A380, A413, A356, LM20, LM24
Highlight

H97 Low Pressure Die Casting Mould

,

Die Casting Vehicle Aluminium Support

,

H97 Vehicle Aluminium Support

Leave a Message
Product Description

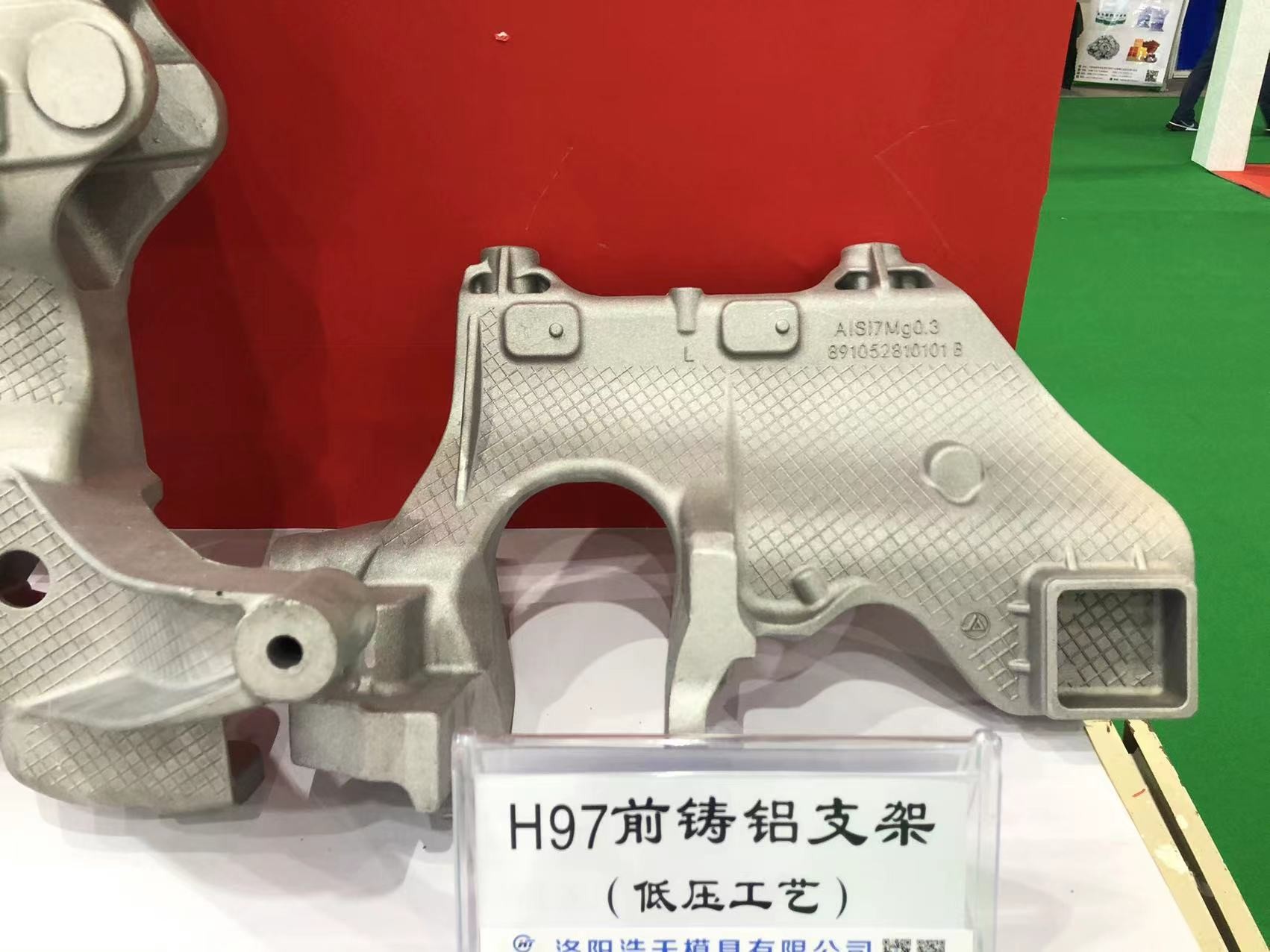

H97 Low Pressure Die Casting Mould Vehicle Aluminium Support

Low-pressure air is introduced into a sealed furnace holding a tank of molten metal. The metal feeds up slowly through a riser tube and into the die cavity. Once the casting has solidified in the die, air pressure is released, allowing any residue molten metal still in the riser to fall back into the tank for recycling. When cooled, the casting is removed.


Parameters

Product Name
H97 Low Pressure Die Casting Mould Vehicle Aluminium Support
Surface
Shot Blasting, Electrophoresis, Powder Coating, Anodized or customised.
Color
As your requirements
Material
Aluminum
Application
Auto parts, ,Light fixture, lamp cover, led light housing,heat sink or any other type of die casting parts
Service
OEM/ODM
Product's Design
Customized as customers' drawings or samples


Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;



About Us



While leading the Chinese brand, Luoyang Liushi mould develop the international market positively, we export a large number of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and we have manufactured mould for Germany's machine Teubert and American molding machine Vulcan.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 0



The research and development center is consist of 36 designers who are expert in 3D design, mold design, NC programming craftsmen, lost foam casting craftsmen and so on. We provide a full range of design and services for you. We discuss the mould process and confirm the scheme with your engineer together, this can guarantee the mould structure more reasonable more safety and more efficiency. We finish the product model and detection through reserve scan and 3D Coordinate Measuring technology to make sure each customer satisfy their mould.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 1





We have lost foam casting process and gravity casting process. There are 2 automatic casting production lines of lost foam process, 1 production line of T6 heat treatment, 1 set EPS foaming machine, 2 sets 1000kg centralized melting furnaces, 6 sets 600kg graphite crucible furnaces, 1 set automatic HS - CXJ - 3200 high efficiency and energy-saving molding machine, 16 sets of other model white pattern molding machine, 1 set plain bumper with the same advanced performance as American Fukang brand, 1 set density equivalent meter, 1 set Fosco dusting machine; 2 sets Aluminum alloy gravity pouring and turning machine, 3 sets Coated sand core-making machine , 1 set X-ray flaw detection spectrometer, 1 set Metallographic analyzer, and more than 20 sets of other corollary equipment. Not only we can supply with Aluminum Alloy Castings , but also we can supply with machined finished parts. The capacity of Aluminum Alloy Gearbox Casing Castings can reach up to above 10000 tons every year. The reliable products passing rate of 95%.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 2
