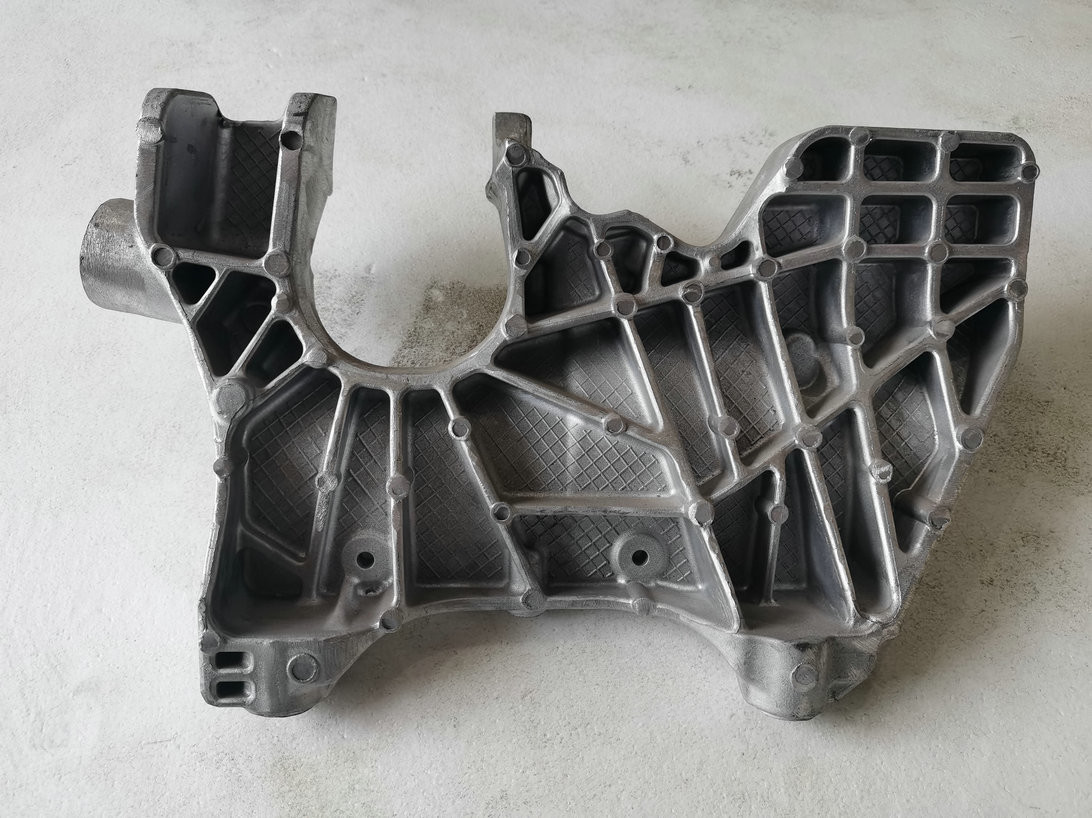

• Low Pressure Die Casting Mould Cast Aluminum Front Bracket
Low Pressure Die Casting Mould Cast Aluminum Front Bracket

Low Pressure Die Casting Mould Cast Aluminum Front Bracket

Product Details:

Place of Origin: China Luoyang
Brand Name: Liushi
Certification: ISO 9001:2008
Model Number: Cast Aluminum Front Bracket

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Wooden Boxes
Delivery Time: 30-45 days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Low Pressure Die Casting Mould Product Material: A380 A413
Demoulding: Automatic Product: Cast Aluminum Front Bracket
Average Wall Thickness: >3mm Machining: CNC Lathe Machining
Mould Life: 500,000-1,000,000 Shots Using Hardness: >HRC45
High Light:

High quality Low Pressure Die Casting Mould

,

Cast Aluminum Front Bracket

,

Pressure Die Casting Mould Bracket

Product Description

Low Pressure Die Casting Mould Cast Aluminum Front Bracket



Low Pressure Die Casting Mould Introduction :



1. Aluminum Die Casting is made of aluminum alloy, also can be produced according to your requirements.
2. Different kinds of finish available,l like anodized, power coating, painting, polishing, electrophoress, plating ect
3. Different dimensions according to the client's request



Low Pressure Die Casting Mould Application



Transportation, Agricultural machinery equipment, Construction machinery, Water conservancy facilities, Space flight and aviation, Chemical machinery, Sea carriage and so on.



Low Pressure Die Casting Mould Specification



Product Name
Low Pressure Die Casting Mould Cast Aluminum Front Bracket
Size
customized
Color
As your requirements
Material
Aluminum
Application
Auto parts, ,Light fixture, lamp cover, led light housing,heat sink or any other type of die casting parts
Service
OEM/ODM
Product's Design
Customized as customers' drawings or samples



Manufacture Process


1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery



Our Advantages


1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have teflon(TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.



About Us



While leading the Chinese brand, Luoyang Liushi mould develop the international market positively, we export a large number of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and we have manufactured mould for Germany's machine Teubert and American molding machine Vulcan.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 0



The research and development center is consist of 36 designers who are expert in 3D design, mold design, NC programming craftsmen, lost foam casting craftsmen and so on. We provide a full range of design and services for you. We discuss the mould process and confirm the scheme with your engineer together, this can guarantee the mould structure more reasonable more safety and more efficiency. We finish the product model and detection through reserve scan and 3D Coordinate Measuring technology to make sure each customer satisfy their mould.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 1





We have lost foam casting process and gravity casting process. There are 2 automatic casting production lines of lost foam process, 1 production line of T6 heat treatment, 1 set EPS foaming machine, 2 sets 1000kg centralized melting furnaces, 6 sets 600kg graphite crucible furnaces, 1 set automatic HS - CXJ - 3200 high efficiency and energy-saving molding machine, 16 sets of other model white pattern molding machine, 1 set plain bumper with the same advanced performance as American Fukang brand, 1 set density equivalent meter, 1 set Fosco dusting machine; 2 sets Aluminum alloy gravity pouring and turning machine, 3 sets Coated sand core-making machine , 1 set X-ray flaw detection spectrometer, 1 set Metallographic analyzer, and more than 20 sets of other corollary equipment. Not only we can supply with Aluminum Alloy Castings , but also we can supply with machined finished parts. The capacity of Aluminum Alloy Gearbox Casing Castings can reach up to above 10000 tons every year. The reliable products passing rate of 95%.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 2
