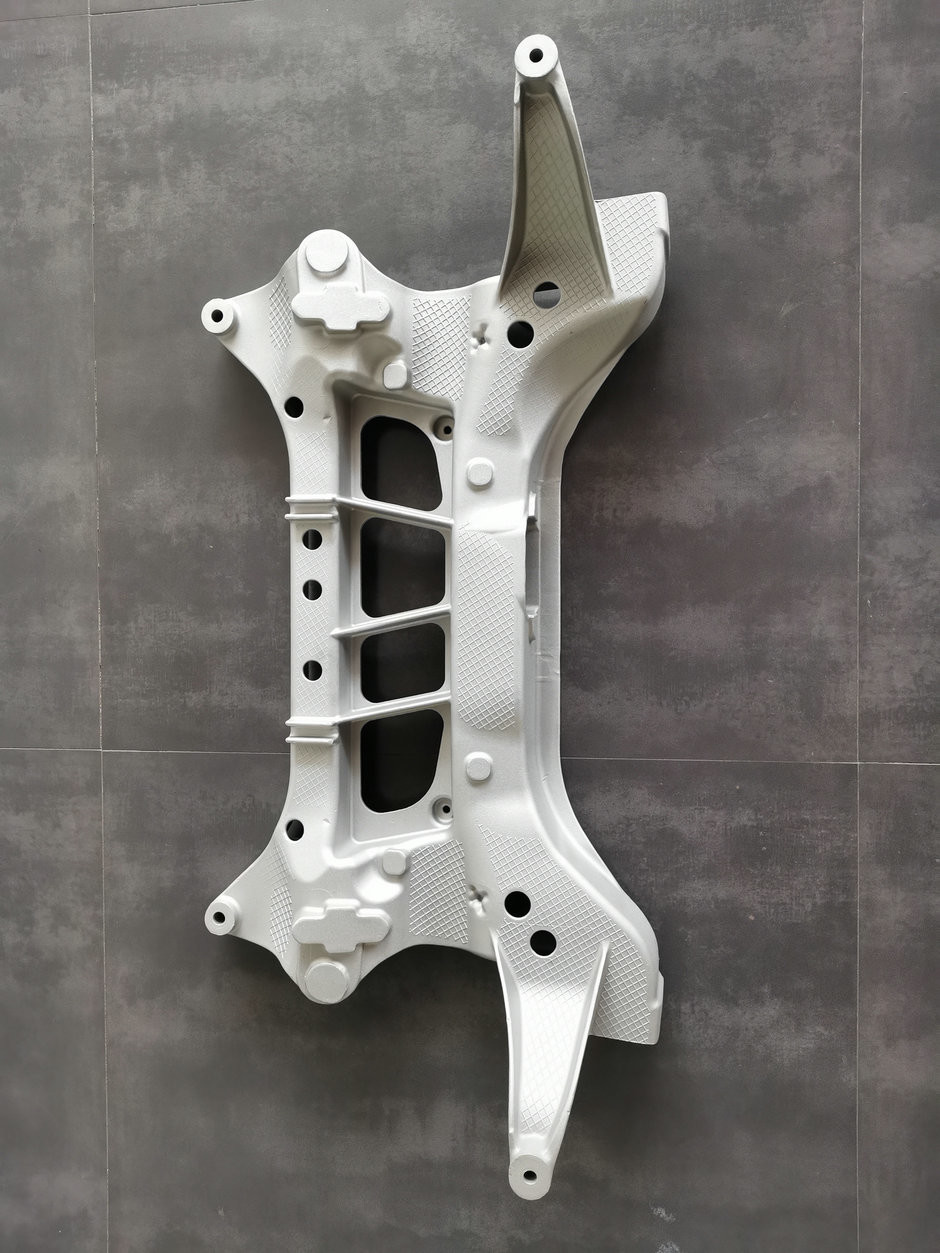

• Customized Aluminum Die Casting Mould Bracket One Stop Service
Customized Aluminum Die Casting Mould Bracket One Stop Service

Customized Aluminum Die Casting Mould Bracket One Stop Service

Product Details:

Place of Origin: China Luoyang
Brand Name: Liushi
Certification: ISO 9001:2008
Model Number: Aluminum Die Casting Mould Bracket

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Wooden Boxes
Delivery Time: 30-45 days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Aluminum Die Casting Mould Bracket Product Material: Aluminium
Product: Customized Surface Treatment: Heat Treatment >HRC45
Average Wall Thickness: >3mm Product Range: Light Fixture, ,light,Industrial,furniture
Metal Color: Black Metal Customized: Yes
Mould Life: 500,000-1,000,000 Shots Using Hardness: >HRC45
High Light:

Aluminum Die Casting Mould Bracket

,

Customized Aluminum Die Casting Mould

,

Die Casting Mold Aluminum Bracket

Product Description

Customized Aluminum Die Casting Mould Bracket One Stop Service

Pressure Casting Mould Features

  • Engineering With Accuracy and Stability Dimensional
  • Easily Assembled and Disassembled;
  • Low maintenance
  • Longer life
  • Fine finish

Low Pressure Aluminum Die Casting Mold Parameters


Mold Base LKM C50 + P20 for AB, Cast iron etc.
Inserts(cavity and core) Dievar, H13, 8407, 1.2344 or the material you required
Standard HASCO, DME, MISUMI, PUNCH and so on
Product Material ADC12, ADC14, A360, A380, AlSi9Cu3 and so on
Mold Treatment Heat Treatment >HRC45
Product Surface Sand blasting, Powder coated, Painting, Anodizing, etc
Shape & Color Can be design according to your needs
Process High Pressure Die Casting
Certificated ISO 9001:2015 Certificated


Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery


Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have teflon(TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.



About Us



While leading the Chinese brand, Luoyang Liushi mould develop the international market positively, we export a large number of molds to the United States, India, Taiwan and other countries. We have become an international first-class lost foam mould supplier and we have manufactured mould for Germany's machine Teubert and American molding machine Vulcan.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 0



The research and development center is consist of 36 designers who are expert in 3D design, mold design, NC programming craftsmen, lost foam casting craftsmen and so on. We provide a full range of design and services for you. We discuss the mould process and confirm the scheme with your engineer together, this can guarantee the mould structure more reasonable more safety and more efficiency. We finish the product model and detection through reserve scan and 3D Coordinate Measuring technology to make sure each customer satisfy their mould.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 1





We have lost foam casting process and gravity casting process. There are 2 automatic casting production lines of lost foam process, 1 production line of T6 heat treatment, 1 set EPS foaming machine, 2 sets 1000kg centralized melting furnaces, 6 sets 600kg graphite crucible furnaces, 1 set automatic HS - CXJ - 3200 high efficiency and energy-saving molding machine, 16 sets of other model white pattern molding machine, 1 set plain bumper with the same advanced performance as American Fukang brand, 1 set density equivalent meter, 1 set Fosco dusting machine; 2 sets Aluminum alloy gravity pouring and turning machine, 3 sets Coated sand core-making machine , 1 set X-ray flaw detection spectrometer, 1 set Metallographic analyzer, and more than 20 sets of other corollary equipment. Not only we can supply with Aluminum Alloy Castings , but also we can supply with machined finished parts. The capacity of Aluminum Alloy Gearbox Casing Castings can reach up to above 10000 tons every year. The reliable products passing rate of 95%.



China LUOYANG LIUSHI MOULD CO.,LTD company profile 2
