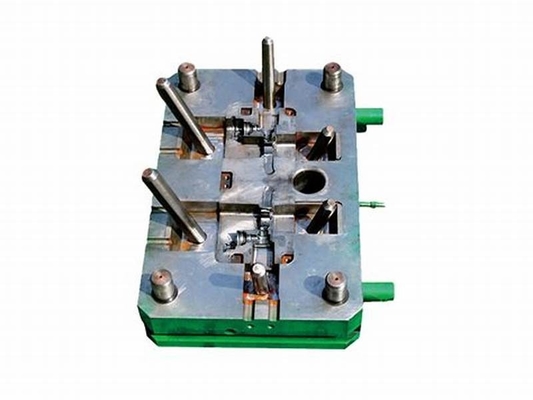

Adc12 A380 Reusable Casting Aluminum In Steel Molds Low Pressure
Product Details:
| Place of Origin: | China Luoyang |
| Brand Name: | Liushi |
| Certification: | ISO 9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Casting Aluminum In Steel Molds | Average Wall Thickness: | >4mm |
|---|---|---|---|
| Mould Life: | 50,000-100,000 Shots | Material: | Adc12 A380 |
| Product Range: | Car, Hardware | Using Hardness: | >HRC45 |
| Usage: | Foundry | Certification: | ISO 9000 |
| High Light: | Reusable Casting Aluminum In Steel Molds,A380 Casting Aluminum In Steel Molds,Low Pressure Adc12 Metal Casting Molds |
||
Product Description
Adc12 A380 Reusable Casting Aluminum In Steel Molds Low Pressure
Casting Aluminum In Steel Molds Application
Metal parts for vehicle, agriculture machine, construction machine, transportation equipment, Valve and Pump system. E.g. Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Casting Aluminum In Steel Molds Features
- Engineering With Accuracy and Stability Dimensional
- Longer life
- Fine finish
- High strength
- Rugged design
- Durable nature
Casting Aluminum In Steel Molds Specification
| Product Name | Adc12 A380 Reusable Casting Aluminum In Steel Molds Low Pressure | ||
| Size |
customized
|
||
| Color | As your requirements | ||
|
Material
|
Aluminum | ||
| Application | Auto parts, ,Light fixture, lamp cover, led light housing,heat sink or any other type of die casting parts | ||
| Service |
OEM/ODM
|
||
|
Product's Design
|
Customized as customers' drawings or samples
|
||
Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery
Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
