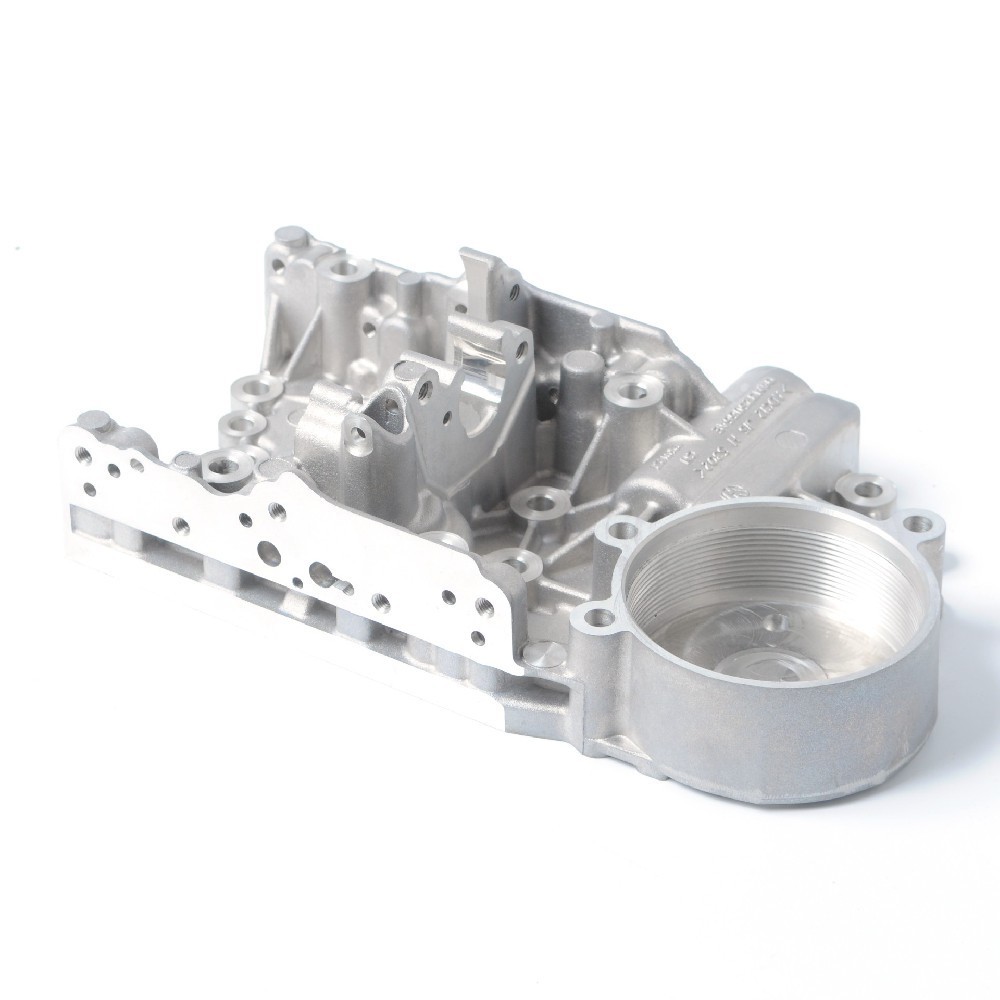

Heat Treatment Aluminum Die Casting Mold 50,000-100,000 Shots

Place of Origin China Luoyang
Brand Name Liushi
Certification ISO 9001:2008
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Aluminum Die Casting Mold Product Range ,light,Industrial,furniture
Customized Yes Standard DIN AISI ASTM
Average Wall Thickness >3mm Surface Treatment Heat Treatment
Using Hardness >HRC45 Mould Life 50,000-100,000 Shots
High Light

50 000 Shots Aluminum Die Casting Mold

,

100 000 Shots Aluminum Die Casting Mold

,

50 000 Shots aluminium casting molds

Leave a Message
Product Description

Heat Treatment Aluminum Die Casting Mold 50,000-100,000 Shots​



Aluminum Die Casting Mold Description



Product Name
Heat Treatment Aluminum Die Casting Mold 50,000-100,000 Shots
Material
A380,A413,A360,Adc12,A325,ZL102,ZL104 etc.
Weight
0.015-8kg (0.033-18lb)
Process Name
1
Incoming material inspection
8
Cleaning
2
Material
9
Appearance inspection
3
Melting
10
Leakage testing
4
Die casting
11
Inspection parts after chromating
5
Deburring
12
Packaging
6
Process inspection
13
Inspecting for delivery
7
Machining
14
Delivery
Drawing
Provide by customer, or design according as the sample
Drwing format
Pro/E, AutoCAD, Solidworks, CAXA, UG, CAD, CAM, CAE, STP, IGES, etc.
Mould
Design and produce by ourself



Aluminum Die Casting Mold Range



Transportation, Agricultural machinery equipment, Construction machinery, Water conservancy facilities, Space flight and aviation, Chemical machinery, Sea carriage and so on.



Pressure Die Casting Features

  • Engineering With Accuracy and Stability Dimensional
  • Easily Assembled and Disassembled;
  • Low maintenance
  • High strength
  • Rugged design
  • Durable nature



Manufacture Process


1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery



Our Advantages


1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.



Company profile



Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.


Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
