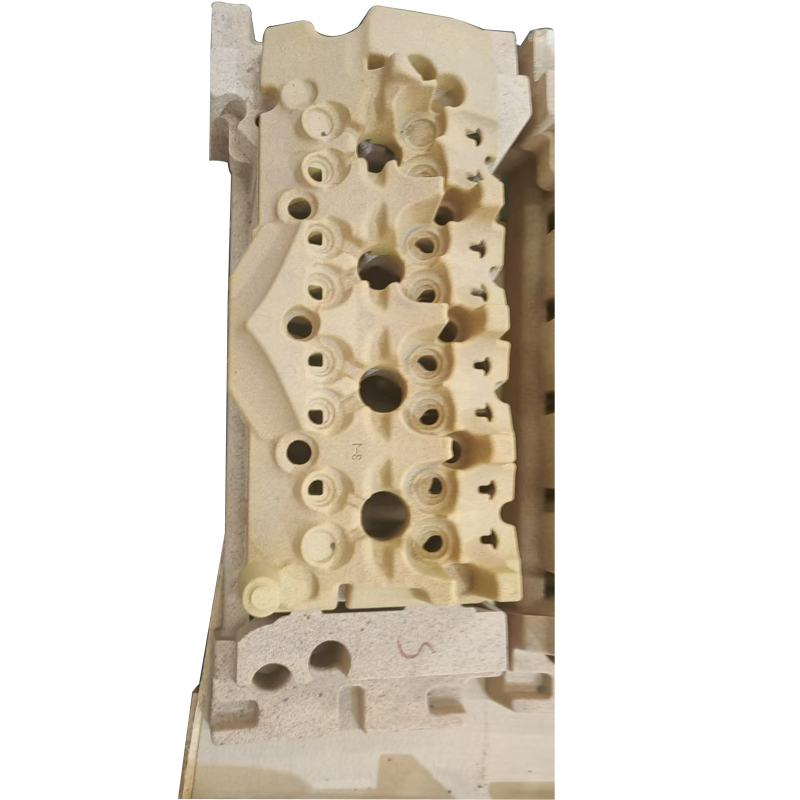

Aluminum Cylinder Head Gravity Casting Mold for Sand Cores

  • Aluminum Cylinder Head Gravity Casting Mold for Sand Cores
Place of Origin Luoyang, China
Brand Name Liushi
Certification ISO 9001:2008
Model Number Cylinder Head
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Metal Casting Molds Mold Material 738H
Cavity Single Or Multiple Average Wall Thickness >3mm
Surface Treatment Polish. Etched. Texture Customized Yes
Mould Life 500,000-1,000,000 Shots QC 100% Strict Inspection For Every Processing
Highlight

aluminum cylinder head mold

,

gravity casting sand core mold

,

metal casting core mold
Leave a Message
Product Description
Metal Casting Mould for Cylinder Head Gravity Casting Sand Cores Precision CNC Tooling
Product Attributes
Attribute Value
Product Name Metal Casting Molds
Shaping Mode Plastic Injection Mould
Mold Material 738H
Product Material Aluminium
Average Wall Thickness >3mm
Surface treatment Polish. Etched. Texture
Customized Yes
Mould Life 500,000-1,000,000 Shots
Product Description
We engineer high-performance metal casting moulds specifically for producing defect-free sand cores used in aluminum/iron cylinder head gravity casting. These CNC-machined core boxes (H13 tool steel, HRC 48-52) feature FEA-optimized cavities that replicate complex coolant channels, oil galleries, and combustion chambers with micron-level accuracy - ensuring leak-proof engine castings for automotive, marine, and power generation industries.
Key Features & Advantages
  • Zero-Porosity Guarantee: Laser-calibrated venting systems eliminate gas entrapment in thin walls (down to 3mm).
  • Extended Tool Life: Tungsten carbide inserts in high-erosion zones sustain 200,000+ cycles.
  • Thermal Stability: Conformal cooling channels maintain ±8°C uniformity during resin curing.
  • Rapid Changeover: Modular inserts switch between V6/V8/I4 architectures in <15 mins.
  • Automation Ready: Integrated KUKA/FANUC interfaces enable robotic core handling.
Specification
Product Name Cylinder Head Gravity Casting Sand Core
Size Customized
Color As your requirements
Material Aluminum
Application Auto parts, Light fixture, lamp cover, LED light housing, heat sink or any other type of die casting parts
Service OEM/ODM
Product's Design Customized as customers' drawings or samples
Manufacture Process
  1. Review the part design, drawings and quality standard from clients
  2. Mould and Tooling design & manufacturing
  3. Mould and Tooling testing & confirm the sample
  4. Die casting raw castings
  5. Surface treatment: Trimming, Deburring, polishing, cleaning, passivation & power coating
  6. Precision machining: CNC lathes, milling, drilling, grinding etc
  7. Full Inspection
  8. Packing
  9. Delivery
Aluminum Cylinder Head Gravity Casting Mold for Sand Cores 0
Applications
  • Turbocharged gasoline/diesel cylinder heads
  • Hydrogen/NH₃ combustion engine development
  • Marine propulsion cylinder blocks
  • Hybrid EV range-extender units
  • Stationary generator heads
Why Choose Us?
  • One-stop Solution: From mold design, mold making, machining, fabrication, welding, surface treatment, assembly, packing to shipping
  • Quality Guarantee: Professional team with experienced engineers, precision machines, CMM and closed-loop QC system
  • Customer Service: Specialized sales support with timely technical assistance and after-sales service
Company Profile
Luoyang Liushi Mould Co., Ltd was established in 2001 and is the National Standard Setting Unit for Lost Foam Casting Mould. Located in Luoyang City, we have a 9,800m² office building and 22,000m² workshop, equipped with comprehensive facilities for research, development, design, foundry, machining, assembly, and surface treatment. As a Luoyang municipal R&D and technology center, our technicians provide on-site guidance for mould assembly, test production, and complete technology for lost foam casting processes.
With our business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services. After years of development, we have become the preferred mould supplier for many lost foam casting manufacturers and an exclusive supplier for several clients.
Aluminum Cylinder Head Gravity Casting Mold for Sand Cores 1
