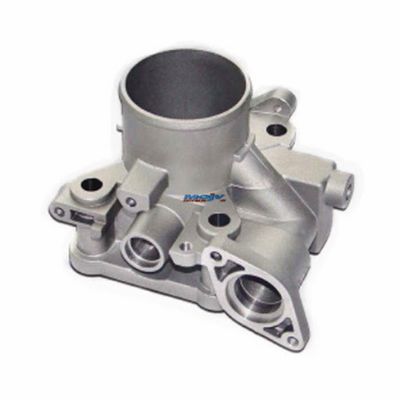

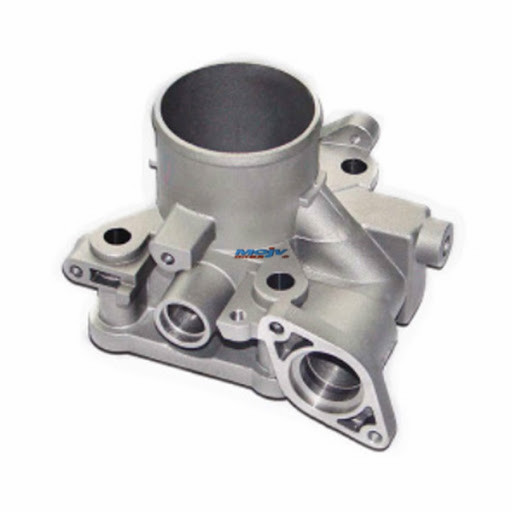

Shot Blast STEP Drawing Aluminium Pressure Die Casting

Place of Origin China Luoyang
Brand Name Liushi
Certification ISO 9001:2008
Minimum Order Quantity 1 Piece
Packaging Details Wooden Boxes
Delivery Time 30-45 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Aluminium Pressure Die Casting Customized Yes
Demoulding Automatic Using Hardness >HRC45
Mould Life 500,000-1,000,000 Shots Metal Color Black Metal
Surface Treatment Shot Blast Average Wall Thickness >3mm
Drawing STEP Drawing Product Material Aluminium
High Light

STEP Drawing Aluminium Pressure Die Casting

,

CT9 Aluminium Pressure Die Casting

,

STEP Drawing aluminium gravity casting

Leave a Message
Product Description

Shot Blast STEP Drawing Aluminium Pressure Die Casting



Our Products



- General instrumentation, including the molding that holds it all in place

- Housings for electronic module controls

- Radio controls

- Faceplates and lenses

- Splash guards and other exterior automotive features



Aluminium Pressure Die Casting Range



Transportation, Agricultural machinery equipment, Construction machinery, Water conservancy facilities, Space flight and aviation, Chemical machinery, Sea carriage and so on.



Aluminium Pressure Die Casting Features

  • Engineering With Accuracy and Stability Dimensional
  • Easily Assembled and Disassembled;
  • Low maintenance
  • Longer life
  • Fine finish
  • High strength
  • Rugged design
  • Durable nature

Aluminium Pressure Die Casting Parameters



Material Capability Aluminum,Zinc,Brass,Iron,Carbon steel, Stainless steel, etc.
Surface Treatment Shot blast, beat blast, powder coating, painting, zinc plating, hot dip galvanized, electrophoreses..etc
Product Weight 0.01KG-50000KG
Casting Tolerance CT3-CT9
Trade Terms FOB
Packing single polybag, bubble bags,wooden case,carton box..etc
Delivery terms 15-45days for bulk



Manufacture Process


1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery



Our Advantages


1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
